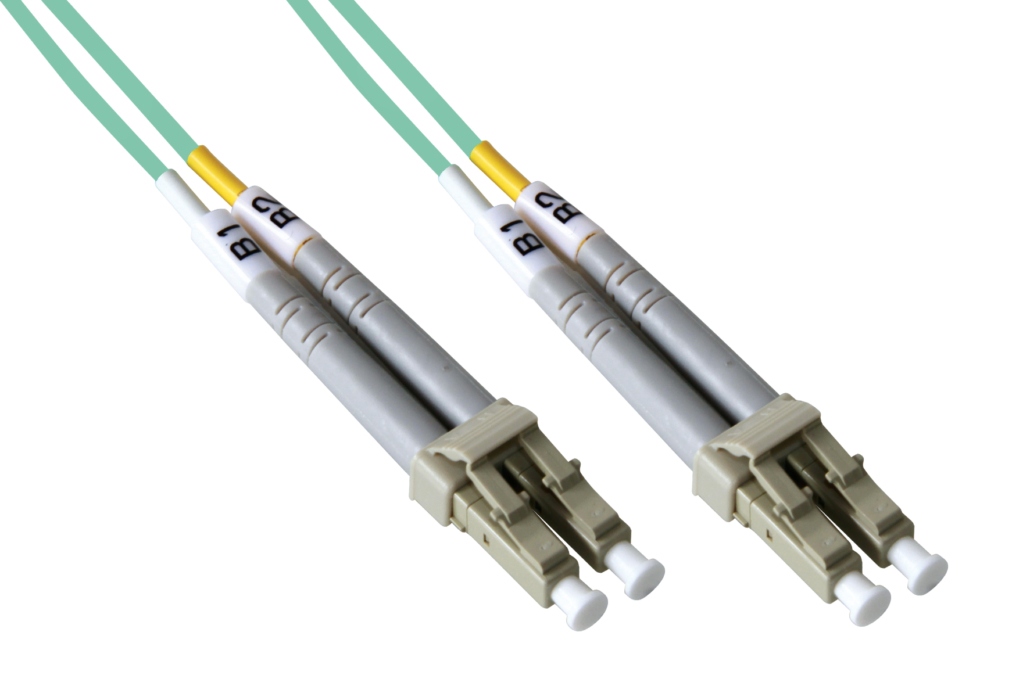

Patch cord dual fibre LC-LC 50/125 OM3 MM 5m

Code : 2008134OM3
Add to list
Docs

Description

Braces of permutation dual-fibre multimode 50/125 OM3 supplied terminated on a7> both sides with connectors SC, LC or ST depending on the type requested, suitable for connection between active equipment, panels optical and boxes of termination optical. Available in standard versions with lengths from 1 to 10 metres, they are available on request also with connectors and customised lengths.

<span class="qb-accordion-title">General characteristics</span>

  • Connection Type LC/LC
  • Packaging Each brace is packaged individually and provided with the relevant test report.
  • Fiber Multimode 50/125 OM3
  • Insertion Loss Typical 0.2 dB
  • Cable Duplex Tight with LSZH (Low Smoke Zero Halogen) sheath
  • Operating temperatures From -20°C to 60°C
  • Lunghezza 5 mt

<span class="qb-accordion-title">Performance</span>

  • Standard ISO/IEC 11801;
    ANSI/TIA 568.3-D; IEC 61754;
    IEC 60874
