B0012P 0024

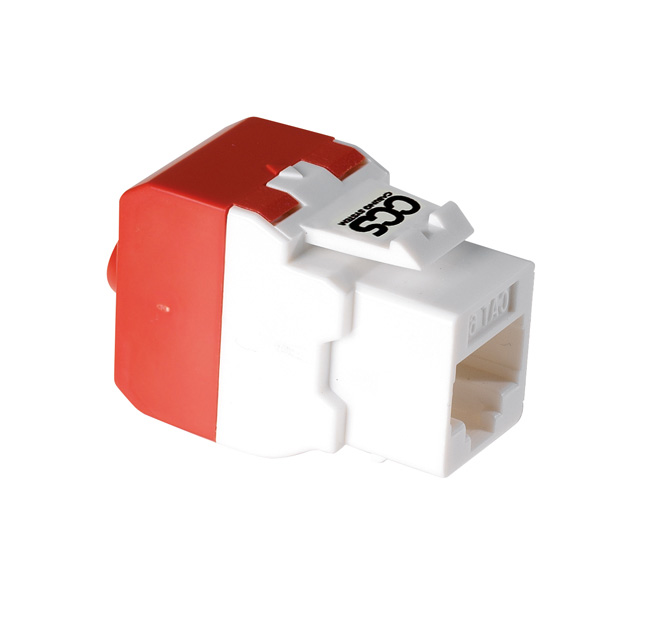

CAT 6A Channel 10G.EXE CCS Easy Crimp UTP RJ45 jack-white

Code : 2001015
Add to list
Documentation

Description

CAT.6A-10G CCS unshielded RJ45 jacks for transmission channels of Class EA. The “Easy Crimp” termination system makes the connection fast and easy, without the use of tools allowing a considerable time saving during the installation phase. Certified by independent testing laboratories in accordance with Class EA requirements on the channel link at 500 MHz and with CAT.6 requirements on the single component, they support 10Gigabit Ethernet (IEEE 802.3an) and are suitable for PoE/PoE+/PoE++ applications.

General characteristics

  • Colour White – red termination cap

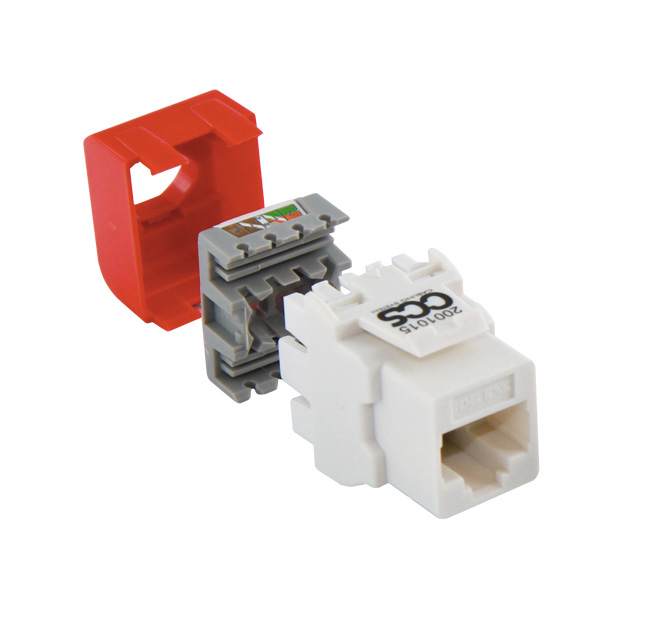

  • Connection Reusable connection cap with ergonomic slots to ease the conductors positioning; IDC insulation displacement for solid or strandedcopper conductors from 23 to 26 AWG; double labelling colour scheme TSB 568 A/B; termination protection cap
  • Installation Keystone universal snap-in for installation on panels, faceplates, civil series adapters and outdoor boxes
  • Material Polycarbonate, high impact, flame-retardant housing; 8 nickel- bronze with 50 µm hard gold.

Performance

  • Certifications Force Technology Channel Class EA Category 6 Component Level
  • Standard ISO/IEC 11801-1/2:2017 (Ed. 1.0)
    IEC 60603-7-4:2010 / IEC 60603-7-5:2010
    EN 50173-1/2:2018
    ANSI/TIA-568,2-D
    IEC 60512-99-002:2019
  • Warranty 25 years on CCS system
