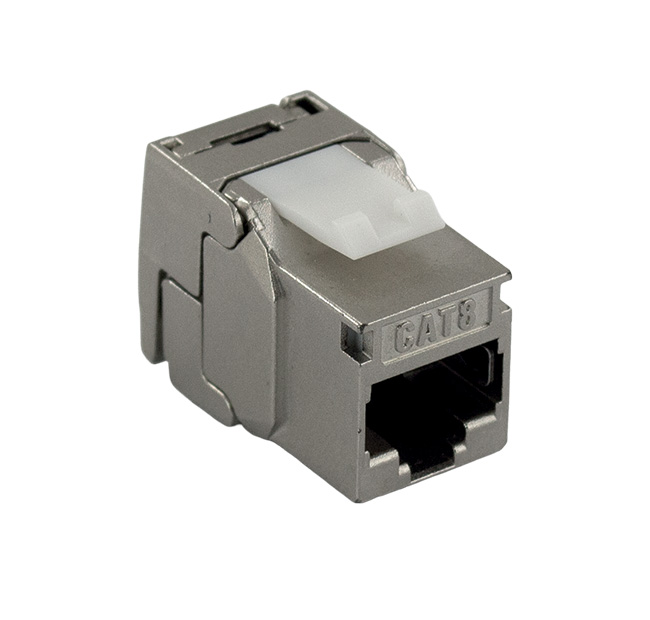

CCS Easy Crimp Compact Cat. 8.1 Channel RJ45 STP Shielded 568A/B Socket

Code : 2001037
Add to list
Docs

Description

Category 8.1 shielded RJ45 Easy Crimp Compact CCS socket for high-density installation solutions, designed for Class I transmission channels.
Supports applications up to 40 Gigabit Ethernet (IEEE 802.3ba). Suitable for PoE/PoE+/PoE++ (IEEE 802.3af/at/bt).

General characteristics

  • Type of connector RJ45 connector compatible with the Keystone standard – T568A/B Easy Crimp Compact
  • Contacts 50 μm gold-plated bronze alloy
  • Materiale di isolamento Termoplastico ad alta resistenza meccanica, ritardante la fiamma tipo UL94V-0
  • Shielding Alloy of zinc nickel-plated die-cast
  • Assembly EASY CRIMP universal insulation-piercing terminal for quick and easy tool-free connections; for solid conductors from 22/26 AWG
  • Labelling Double label with T568A/B connection diagram
  • Identificazioni e loghi Logo CCS, P/N

Performance

  • Compliance Cat. 8.1 Channel / Class I
  • Standard ISO/IEC 11801-1/2
    IEC 60603-7-81
    EN 50173-1/2
    ANSI/TIA-568.2-D
    IEC 60512-99-002
